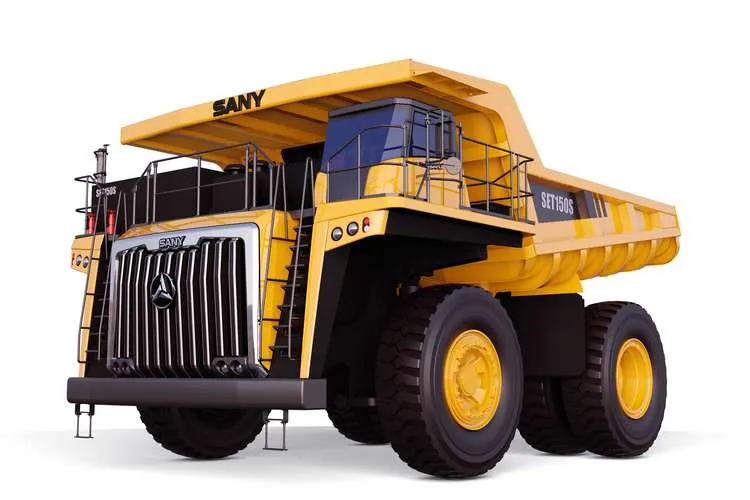

This mining truck integrates independent hydraulic steering with a closed-center valve, piston pump, and accumulator for consistent steering. Emergency control is available if engine power is lost. Drive system performance considers weight, gradient, and rolling resistance, adjusting automatically for efficiency and reliability.

Parameters

• Net Weight- 105T
• Engine Model- Weichai WP17
• Gearbox Type –
• Capacity (Struck/Heaped)- 60/78m³
• Size- 11812*6900*6185mm
• Left/Right Hand Drive- Left/Right
• Total Power- ≥1400kW
• Displacement- 16.72L
• Maximum Torque- 3000NM
• Max. Gradeability- 30%
• Min. Turning Radius- 13200mm
• Number/Type of Cylinders- 8/V shape,turbocharged
• Lubrication System- Automatic lubrication system
• Automatic/Manual- Automatic
• Axle-
• Tyre- 33.00R51
• Load Weight- 136T
