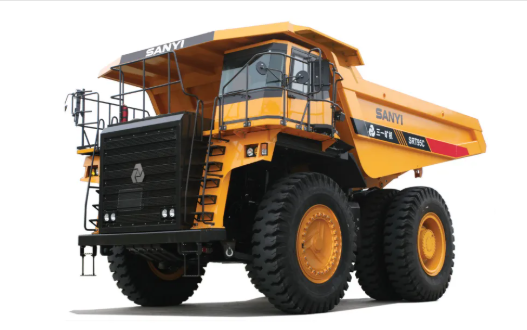

Enjoy a wider view through the panoramic windshield, plus safer operations with a blind area 2 meters shorter than competitors. The optimized mirror system enhances visibility, while reinforced bearings ensure reliability. Hydraulic technology lowers oil temperature by 5℃. Independent modules function seamlessly without interference. Its large steering angle improves maneuverability, and patented suspension reduces vibrations by 20%. McPherson suspension further extends durability, preventing uneven wear and cutting tire costs.

Parameters

• Net Weight- 65T
• Engine Model- Cummins QST30-C1050
• Gearbox Type- Allison H8610AR
• Capacity (Struck/Heaped)- 42/60m³
• Size- 10100x6095x4890mm
• Left/Right Hand Drive- Left/Right
• Total Power- 783kW
• Displacement- 30.5L
• Maximum Torque- 4629NM
• Max. Gradeability- 30%
• Min. Turning Radius- 12000mm
• Number/Type of Cylinders- 4 cycle turbocharged charge air cooled
• Lubrication System- Optional automatic lubrication
• Automatic/Manual- Automatic
• Tyre- 27.00R49 E-4
• Load Weight- 95T
