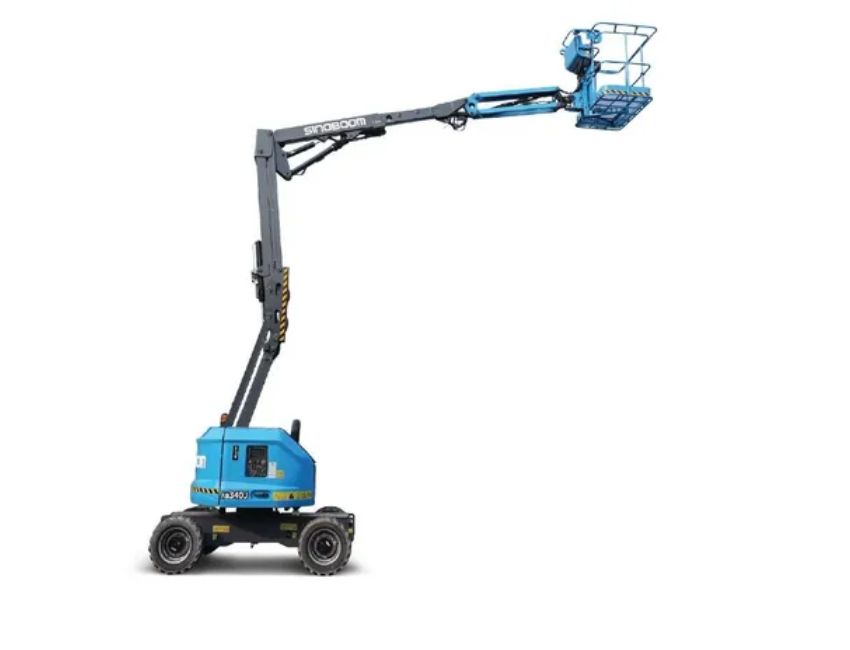

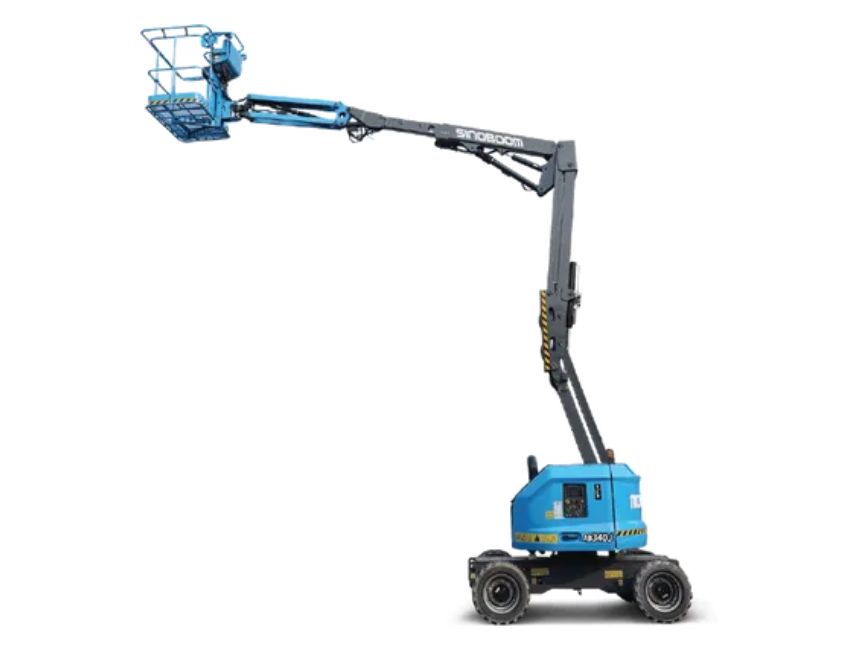

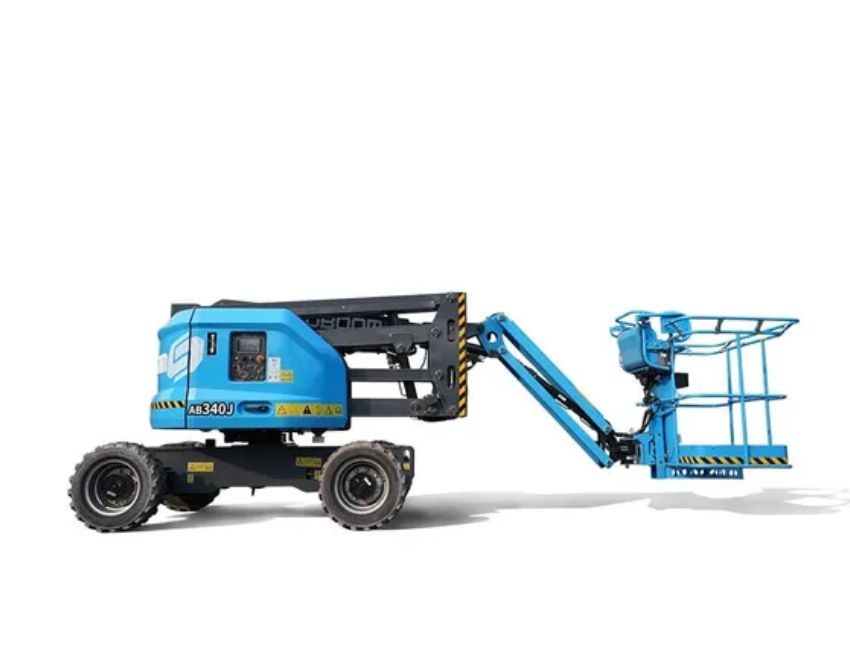

Sinoboom AB10J – Powerful Yet Easy to Handle
Designed for both rugged construction and urban spaces, the AB10J combines lightweight transportability with high terrain adaptability. Its 250 kg load capacity makes it reliable for multiple workers, while the smart diagnostic system ensures less downtime.

Highlights:

• Compact Design for Easy Hauling

• Stable Performance on Uneven Ground

• Fast Troubleshooting Features

Technical specification:

Reference Number- AMH269

Working hours- 0 hrs

Operating weight (kg)- 4,990 Kg

Engine Output- 18.2 kW

Max Number of Operators- 2

Working Height- 12.38 m

Platform Capacity- 250 kg

Telematics- Available

Max Horizontal Extension- 5.9 m

Power- Diesel

Drive × Steer- 4WD × 2WS

Turntable Rotation- 355 ° non-continuous

Platform Rotation- 160°

Gradeability- 40%

Features:

• 4WD x 2WS Proportional control

• Hydraulic platform leveling

• Tilt protection system

• Emergency lowering system

• Emergency stop system & All motion alarm

• Flashing beacon 355° non-continuous rotation

• Weighing system Anti-pinch device

• Foam-filled non-marking RT tires

• Two-speed travel motor

• Automatic engine shutdown in case of malfunction

• Swing-out engine tray

 —-Request for quote: +971525384269——–
