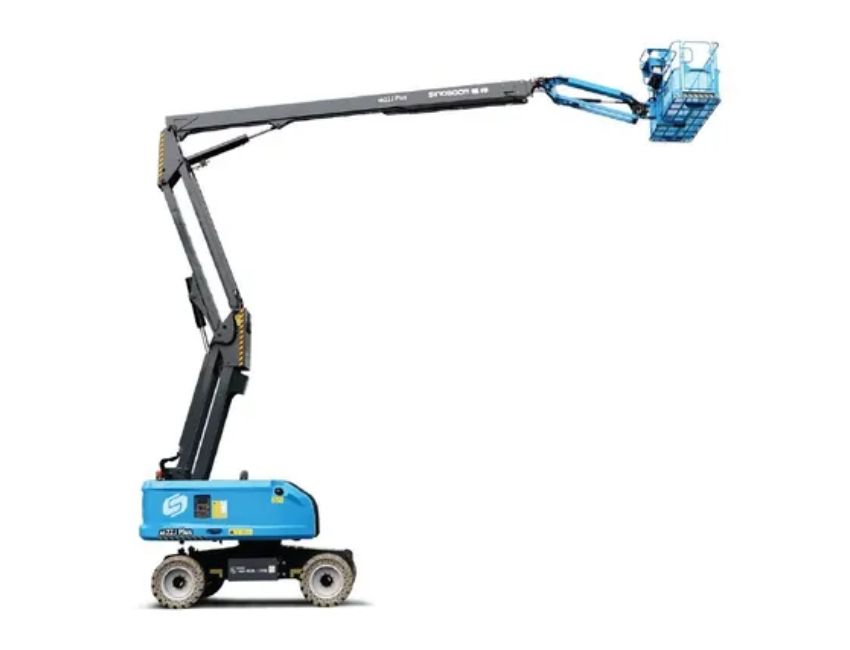

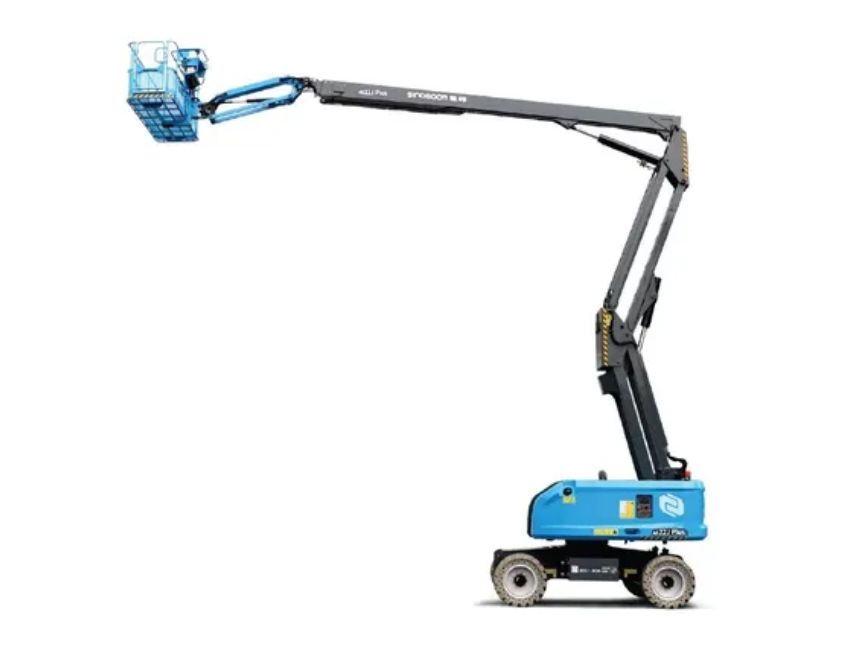

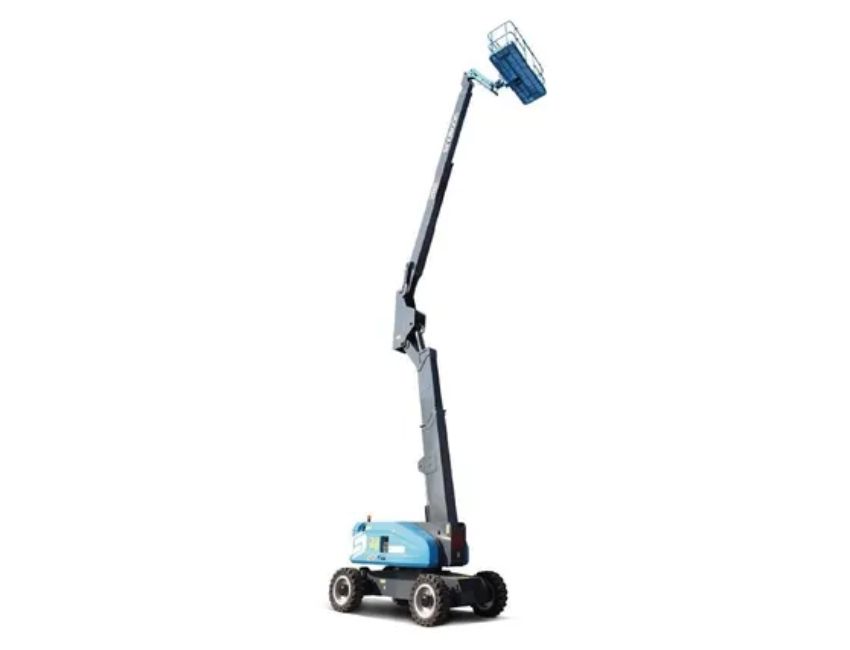

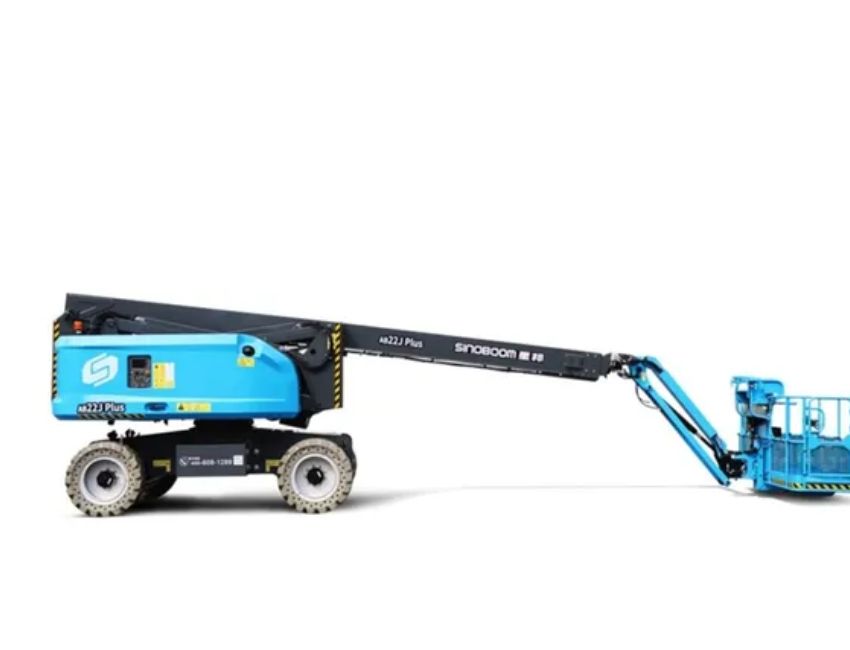

Sinoboom AB22J Plus – Built for Productivity on Any Terrain
Handle tough projects with 454kg platform capacity, load optimization, and AC drive traction. Operators enjoy confidence thanks to its active oscillation, tilt rating, and safety systems, ensuring smooth and secure performance.

Highlights:

• Heavy-Duty Platform Strength

• All-Terrain Drive Capability

• Safe, Reliable Features

Technical specification:

Reference Number- AMH268

Working hours- 0 hrs

Operating weight (kg)- 12,000 Kg

Engine Output- 36 kW

Max Number of Operators- 3

Working Height- 23.6 m

Platform Capacity- 454 kg

Telematics- Available

Max Horizontal Extension- 13.35 m

Power- Diesel

Drive × Steer- 4WD x 2WS (4WS）

Turntable Rotation- 360°/Continuous

Gradeability- 40%

Features:

• Tilt protection system with a max allowable tilt angle of 5°

• Hydraulic leveling and emergency stop/lowering systems

• Rear position confirmation

• Rotating warning light, horn, and buzzer for safety

• Fault diagnosis system

• Proportional control with 3 joysticks

• Continuous 360° turntable rotation

• Active oscillating function

• Four-wheel steering – four-wheel brake

• Weighing system and automotive sleeves for all pipes

• AC power line to the platform

• 7-in smart screen and voice broadcast

 —-Request for quote: +971525384269——–
