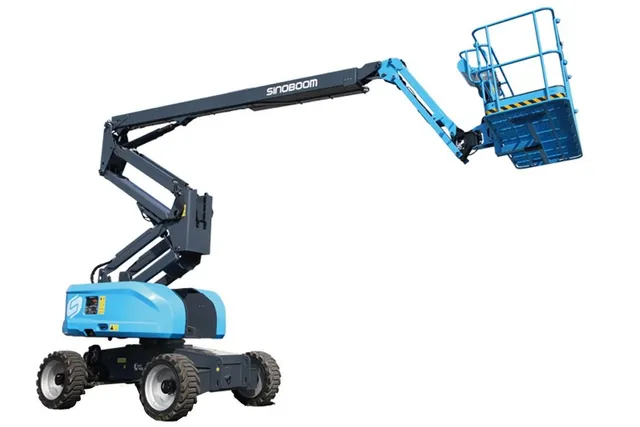

The AB15J is engineered for performance in challenging spaces. Featuring a simplified linkage system, proportional joystick control, and hydraulic leveling, it ensures safe and efficient lifting every time.

Highlights

• Compact Frame for Confined Sites

• Fast-Reacting Lift Controls

• Designed for Consistent Workloads

Technical specification

• Reference Number- AMH209
• Working hours- 0 hrs
• Operating weight (kg)- 7,080 Kg
• Engine Output- 36 kW
• Max Number of Operators- 2
• Working Height- 16.7 m
• Platform Capacity- 250 kg
• Max Horizontal Extension- 8.5 m
• Power- Diesel engine
• Drive × Steer- 4WD × 2WS
• Turntable Rotation- 355°/Non-Continuous
• Platform Rotation- 160°
• Gradeability- 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system
• Tilt protection system Max tilt rating to 5°
• Emergency stop/lowering system
• Telematics-ready connector
• Non-marking tires foam-filled / solid
• AC power to platform
