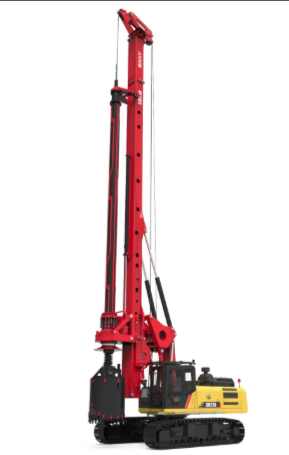

Widely applied in civil engineering, this rig excels in small-diameter, deep borehole projects with fast hoist speeds and precise verticality. Its telescopic wide chassis and roller slewing bearing ensure maximum stability. Powered by an imported EFI engine with optimized fuel distribution, it delivers strong output with higher efficiency. The box-structured mast offers torsion resistance, while the upgraded Kelly bar boosts drilling strength by 25%. A 10-inch HD touch screen makes operation fast and easy.

Parameters

Main Chassis

• Base Engine- Isuzu 6HK1
• Engine Power- 212/2000kW/rpm
• Emission Regulation- China Stage Ⅲ

Rotary Drive

• Rated Speed- 5~30rpm
• Rated Output Torque- 220kN·m

Pile

• Max. Pile Diameter- 1800mm
• Max. Pile Depth- 64/51m

Crowd System

• Crowd Force- 180kN
• Stroke- 4200mm
• Line Pull- 190kN

Overall Machine

• Overall Height- 21040mm
• Operating Weight- 65T
• Transport Width- 3210mm
• Transport Height- 3560mm

Main Winch

• Lifting Capacity- 220kN
• Max. Line Speed- 75m/min
• Rope Diameter- 28mm

Price: 2500000 AED
