Features

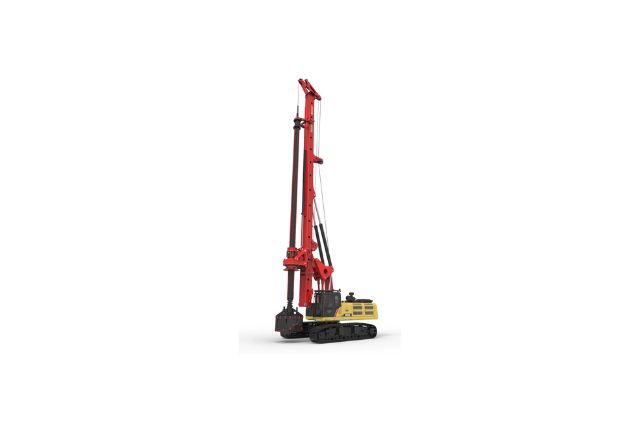

Engineered for Deep Foundation Precision

Ideal for civil works, this rig offers fast hoisting speeds and vertical drilling accuracy for small-diameter boreholes.

Stable and Strong
With a telescopic chassis and roller slewing bearing, the rig maintains excellent balance during deep drilling.

Efficient Engine Operation
EFI system provides intelligent power control, ensuring energy savings without compromising performance.

Parameters

Main Chassis

Base Engine: ISUZU 6UZ1

Engine Power: 257/2000kW/rpm

Emission Regulation: China Stage III

Rotary Drive

Rated Speed: 5~32rpm

Rated Output Torque: 235kN·m

Pile

Max. Pile Diameter: 2000mm

Max. Pile Depth: 68/52m

Crowd System

Crowd Force: 210kN

Stroke: 5000mm

Line Pull: 270kN

Overall Machine

Overall Height: 22870mm

Operating Weight: 81T

Transport Width: 3540mm

Transport Height: 3660mm

Main Winch

Price: AED 1,900,000

Request for quote: +971525384269
