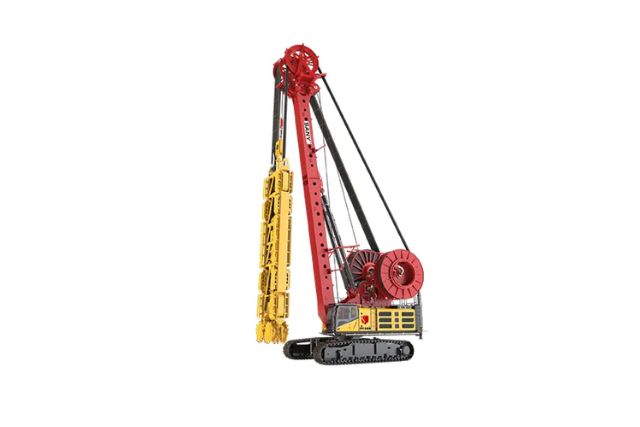

The Sany SDC120 Trench Cutter is a versatile tool designed for deep, vertical trenching in varied geological conditions. Its cutting head is engineered for minimal deviation and high-speed performance. Durable and low-maintenance, the cutter is built for long service life. The hydraulic system provides full control over cutting depth and direction. Ideal for diaphragm walls and retaining structures. The Sany 2025 SDC120 Trench Cutter brings power and precision together.

Parameters

Engine Power: 570.5/1800kW/rpm

Grooving Depth of Single Hole: 2800mm

Grooving Thickness: 800 – 1800mm

Max. Grooving Depth: 120m

Max. Speed of Milling Wheel: 25rpm

Milling Wheel Gearbox Torque: 2×120kN·m

Mud Pump: 450m³/h

Number of Deviation Correction Devices: 12

Overall Quality: 230T

Winch Lifting Force: 2×390kN
