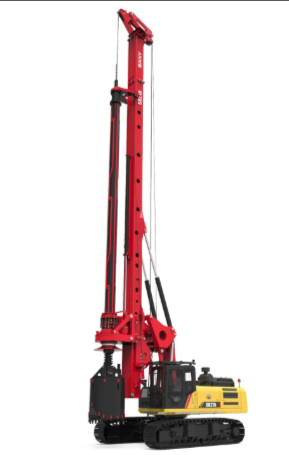

Ideal for deep foundation construction, the SR215-C10 combines fast hoist speed with borehole accuracy. Its wide chassis and slewing system deliver unmatched stability. The EFI engine adjusts fuel use intelligently for energy savings. With a torsion-resistant box mast and upgraded Kelly bar, drilling is more powerful and reliable. A 10-inch HD touchscreen offers quick response for seamless operation.

Parameters

Main Chassis

• Base Engine- Isuzu 6HK1
• Engine Power- 212/2000kW/rpm
• Emission Regulation- China Stage Ⅲ

Rotary Drive

• Rated Speed- 5~30rpm
• Rated Output Torque- 220kN·m

Pile

• Max. Pile Diameter- 1800mm
• Max. Pile Depth- 64/51m

Crowd System

• Crowd Force- 180kN
• Stroke- 4200mm
• Line Pull- 190kN

Overall Machine

• Overall Height- 21040mm
• Operating Weight- 65T
• Transport Width- 3210mm
• Transport Height- 3560mm

Main Winch

• Lifting Capacity- 220kN
• Max. Line Speed- 75m/min
• Rope Diameter- 28mm

Price: 2500000 AED

For More Information

Call us Now: +971 525384269
