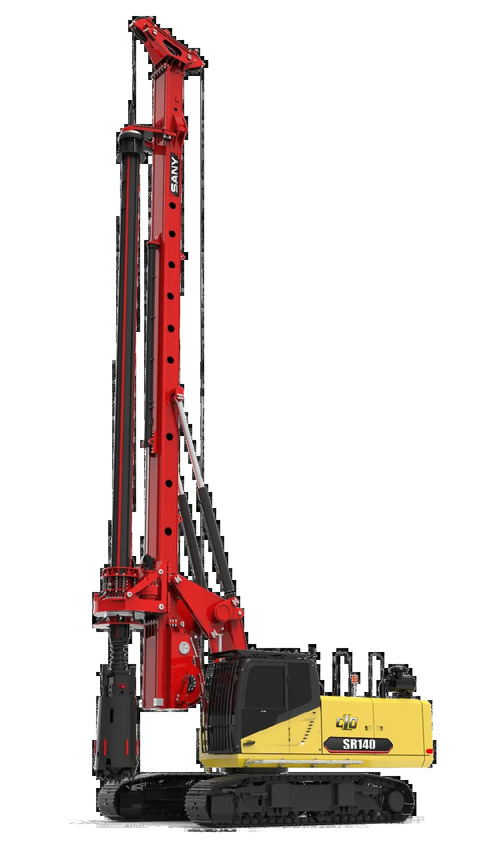

Features

Flexible and Effective
They have a high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operating efficiency, and are widely employed in civil engineering for small diameter and deep borehole construction.

Particular Chassis
For rotary drilling rigs, telescopic huge widening chassis with roller type large diameter slewing bearings provide high stability for digging deep boreholes.
Energy-efficient and cost-effective
Solid power, real-time power distribution adjustment, power optimization control technology, quick response time, increased fuel efficiency, and energy savings are all features of this imported large displacement EFI engine.

Parameters

Main Chassis

Base Engine – ISUZU 4HK1

Engine Power – 133/2000kW/rpm

Emission Regulation – China Stage III

Rotary Drive

Rated Speed – 6～45rpm

Rated Output Torque – 140kN·m

Pile

Max. Pile Diameter – 1300/1500mm

Max. Pile Depth – 45/36m

Crowd System

Crowd Force – 120kN

Stroke – 3700mm

Line Pull – 160kN

Overall Machine

Overall Height – 16490mm

Operating Weight – 37T

Transport Width – 2660/2550mm

Transport Height – 3435mm

Main Winch

Lifting Capacity – 160kN

Max. Line Speed – 80m/min

Rope Diameter – 24mm

Request for quote: +971525384269

Price: AED1,200,000
