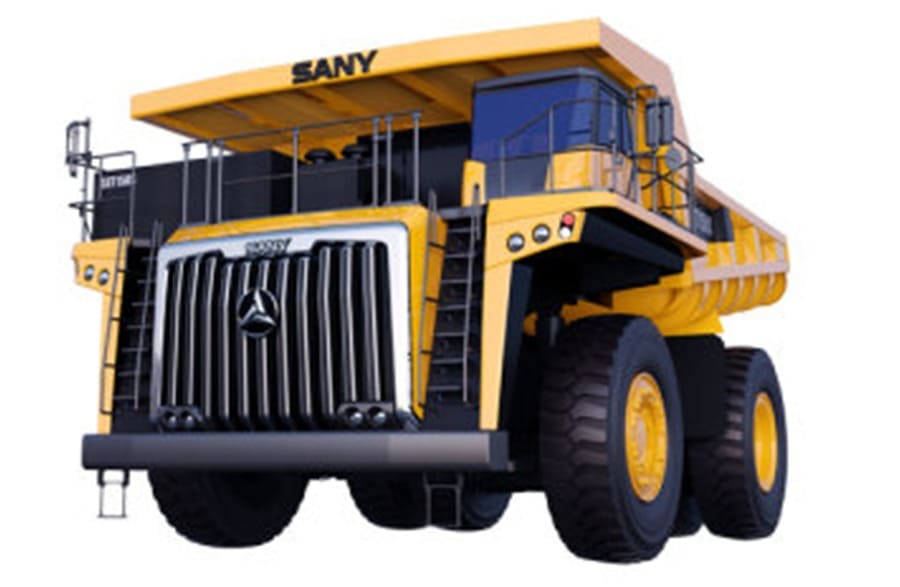

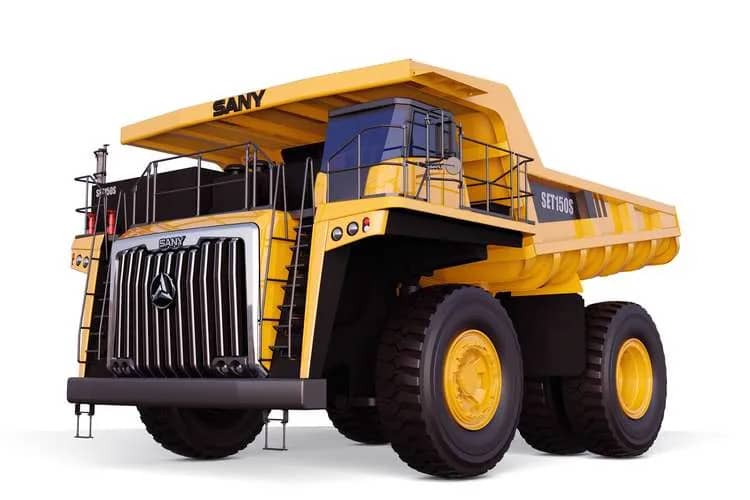

The SANY SET150S Diesel Electric Mining Truck is a reliable solution for large-scale mining operations. Its efficient diesel-electric powertrain reduces fuel costs while maintaining exceptional strength. Built to withstand extreme conditions, it offers excellent load-carrying capacity and long service life. This truck ensures greater efficiency in every haul.
Parameters:
- Net Weight: 105T
- Engine Model: Weichai WP17
- Capacity (Struck/Heaped): 60/78m³
- Size: 11812*6900*6185mm
- Left/Right Hand Drive: Left/Right
- Total Power: ≥1400kW
- Displacement: 16.72L
- Maximum Torque: 3000NM
- Max. Gradeability: 30%
- Min. Turning Radius: 13200mm
- Number/Type of Cylinders: 8/V shape,turbocharged
- Lubrication System: Automatic lubrication system
- Automatic/Manual: Automatic
- Tyre: 33.00R51
- Load Weight: 136T
Features:
- Steering: Independent hydraulic steering with closed-center steering valve, pressure compensating piston pump and accumulator. The accumulator provides uniform steering regardless of engine speed. In the event of loss of engine power, it provides emergency power to the system for steering.
- Electric Drive System: The performance of drive system depends on the gross vehicle weight, gradient and length of transport road, rolling resistance, engine power, and other parameters. The drive system can adjust to the actual working conditions to realize the optimal performance of the mining dump truck.
