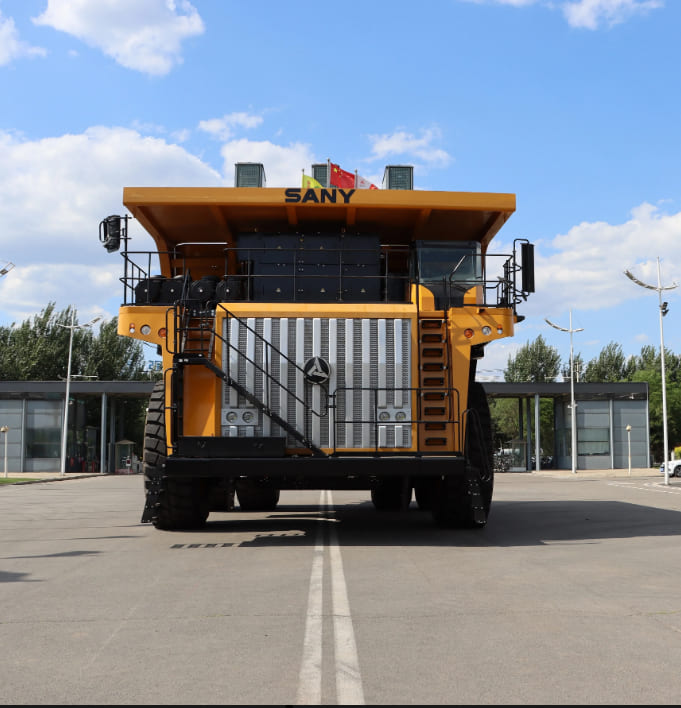

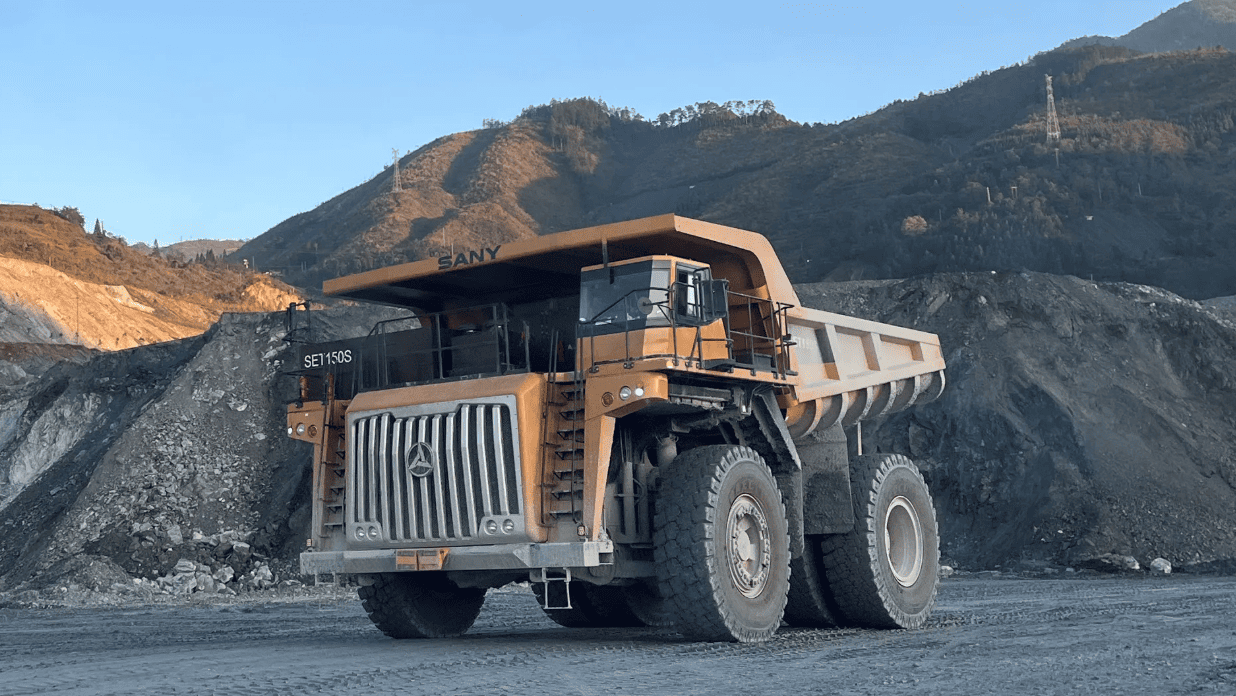

The SANY SET150S (2025) is a powerful diesel-electric mining truck designed to tackle the most demanding jobs. Its hybrid powertrain cuts fuel use and lowers emissions. With a 150-ton capacity, it’s ideal for heavy-duty haulage. Advanced systems optimize energy use and ensure safety. The spacious cab improves operator comfort during long shifts.

Parameters

• Net Weight: 105T
• Engine Model: Weichai WP17
• Gearbox Type: –
• Capacity (Struck/Heaped): 60/78m³
• Size: 11812*6900*6185mm
• Left/Right Hand Drive: Left/Right
• Total Power: ≥1400kW
• Displacement: 16.72L
• Maximum Torque: 3000NM
• Max. Gradeability: 30%
• Min. Turning Radius: 13200mm
• Number/Type of Cylinders: 8/V shape,turbocharged
• Lubrication System: Automatic lubrication system
• Automatic/Manual: Automatic
• Axle: –
• Tyre: 33.00R51
• Load Weight: 136T
