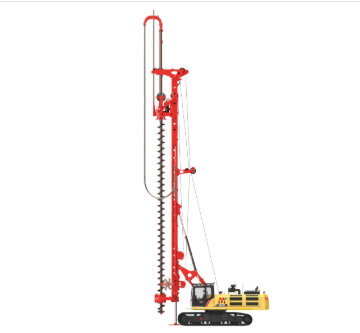

The SANY SR235-MIII Rotary Drilling Rig is a trusted solution for soil and rock layer construction, offering smooth motion control with customizable torque and rotation speeds for diverse environments. Its engines, designed with world-class partners, comply with Tier IV/III emissions and deliver reliable, low-fuel performance. The 15-meter extra-long stroke enhances speed in crowding and pulling for long casing tasks in coastal or gravel terrains. Real-time lock position monitoring prevents operational mishaps, while continuous wire rope tension boosts longevity. The HD touch screen with 3ms refresh and animated graphics provides a user-friendly interface, and proper lubrication ensures smooth machine operation.

Parameters

CFA Mode

• Crowd Force- /kN
• Stroke- 17060mm
• Overall Height- 29775mm
• Max. Pile Diameter- 1000mm
• Max. Pile Depth- 24m
• Operating Weight- 90T
• Line Pull- 770kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 100~230kN·m

Standard Mode

• Crowd Force- 210kN
• Stroke- 15000mm
• Overall Height- 24050mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 73/56m
• Operating Weight- 86T
• Line Pull- 270kN
• Rated Speed- 5~30rpm
• Rated Output Torque- 235kN·m

Main Chassis

• Base Engine- 6UZ1
• Engine Power- 257/2000kW/rpm
• Emission Regulation- China Stage III

Low Headroom

• Crowd Force- 210kN
• Stroke- 4500mm
• Overall Height- 12135~13205mm
• Max. Pile Diameter- 2000mm
• Max. Pile Depth- 24m
• Operating Weight- 75T
• Line Pull- 270kN
• Rated Speed0- 5~30rpm
• Rated Output Torque- 235kN·m

Overall Machine

• Transport Width- 3550mm
• Transport Height- 3750mm

Main Winch

• Lifting Capacity- 235kN
• Max. Line Speed- 70m/min
• Rope Diameter- 32mm

Price: 260000 AED
