AED2,830,000
Listen

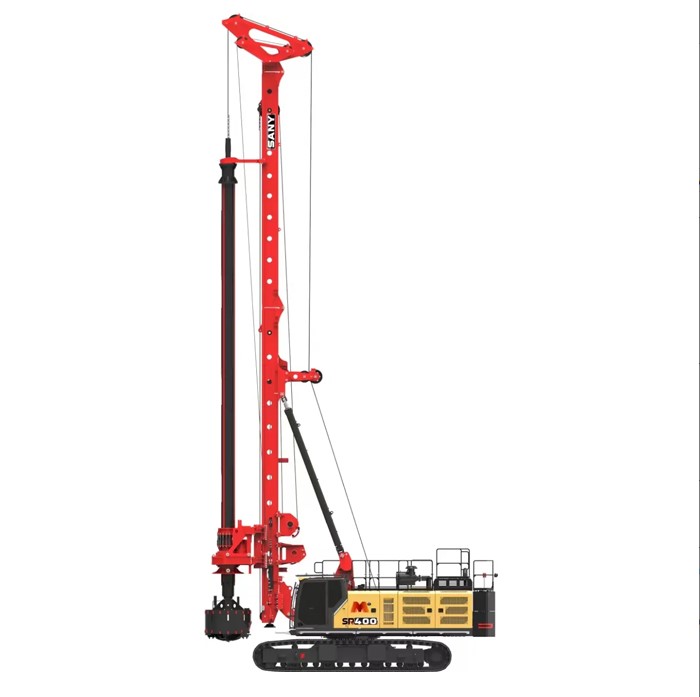

High-performing and dependable, the SANY SR400M-V Rotary Drilling Rig excels in deep foundation and piling tasks. Its robust rotary head and precision hydraulic system deliver efficient drilling under tough conditions. Smart control technology ensures superior accuracy and stability. The heavy-duty structure guarantees long service life and low maintenance needs. Designed to maximize productivity while cutting energy and operational expenses.
Parameters-
- Base Engine: Cummins X15
- Engine Power: 391/1800kW/rpm
- Emission Regulation: Stage V/Tier4 final
- Crowd Force: 405kN
- Stroke: 9000/19000mm
- Line Pull: 405kN
- Overall Height: 27430mm
- Operating Weight: 137T
- Rated Speed: 7~26rpm
- Rated Output Torque: 400kN·m
- Max. Pile Diameter: 2500mm
- Max. Pile Depth: 103/86m
- Transport Width: 3600mm
- Transport Height: 3380mm
- Lifting Capacity: 410kN
- Max. Line Speed: 66m/min
- Rope Diameter: 36mm
>>>Request for quote: +971525384269<<<
Features:
- High Efficiency: Large core parameters such as high torque and crowd force; fast line speed of main rope to ensure high drilling efficiency in hard soil layer; it is suitable for overpass, high-speed rail, large buildings and other large hole foundation fields.
- Full Stroke Crowd: Adopt a winch crowd system with long stroke, fast crowding, and rotary drive display function, suitable for all casing construction in the beach, pebble and backfill formation.
- Economy and Energy Saving: Power optimization control technology is adopted to distribute power in real-time with the smooth and fast response of composite action; moreover, it has high fuel efficiency and low comprehensive fuel consumption.
- Step Drum: Adopt step drum structure with a single layer to realize no crushing, no wear, and increase the service life of wire rope by 35%.
- Intelligent Upgrade: HD touch screen, 3ms refresh frequency, smooth animation display.
- Convenience: The rotary drive key bar is exposed for easy service and replacement; the main winching wire rope is fixed by a wedge, which is easy to disassemble and assemble. Some lubrication points are exposed for easy service.
