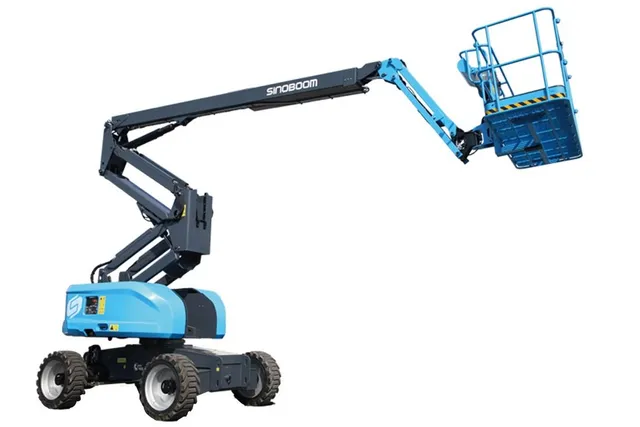

Reach higher with the AB15J, designed for efficiency and control. Its slim profile fits narrow sites, and the lift can move without adjusting the secondary arm. Proportional joystick controls and hydraulic leveling deliver stable, precise performance.

Highlights

• Space-Saving Design

• Rapid Height Control

• Built for Reliable Operation

Technical specification

• Reference Number- AMH209
• Working hours- 0 hrs
• Operating weight (kg)- 7,080 Kg
• Engine Output- 36 kW
• Max Number of Operators- 2
• Working Height- 16.7 m
• Platform Capacity- 250 kg
• Max Horizontal Extension- 8.5 m
• Power- Diesel engine
• Drive × Steer- 4WD × 2WS
• Turntable Rotation- 355°/Non-Continuous
• Platform Rotation- 160°
• Gradeability- 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system
• Tilt protection system Max tilt rating to 5°
• Emergency stop/lowering system
• Telematics-ready connector
• Non-marking tires foam-filled / solid
• AC power to platform
