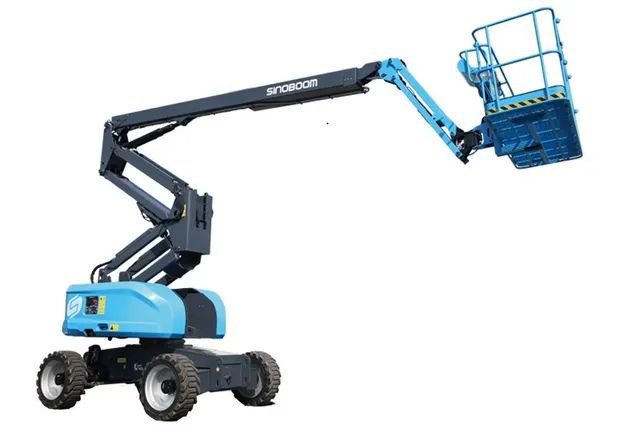

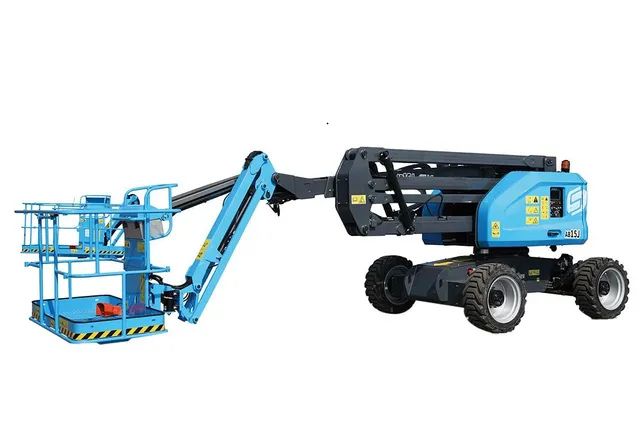

Designed with efficiency and precision in mind, the Sinoboom AB15J boom lift reaches up to 16.7 meters, making it ideal for elevated tasks. Its narrow design and zero tail swing allow for easy navigation in tight or restricted spaces. The platform’s height can be adjusted without altering the secondary arm’s position, simplifying operation. Thanks to a basic linkage system and hydraulic leveling, the lift maintains stable performance. The use of three joysticks with variable proportional control ensures accurate and responsive movement. Whether indoors or outdoors, the AB15J delivers dependable performance for a wide range of jobsite needs.

Highlights

• Ultra-Compact Wheelbase for Tight Spaces
• Fast, Responsive Height Adjustments
• Reliable for Continuous Lifting Operations

Technical specification

Reference Number: AMH209

Operating weight (kg): 7,080 Kg

Engine Output: 36 kW

Max Number of Operators: 2

Working Height: 16.7 m

Platform Capacity: 250 kg

Max Horizontal Extension: 8.5 m

Power: Diesel engine

Drive × Steer: 4WD × 2WS

Turntable Rotation: 355°/Non-Continuous

Platform Rotation: 160°

Gradeability: 40%

Features

• Narrow width with zero tail sweep
• Oscillating function
• 7-in display screen
• 4WD× 2WS
• Proportional control with 3 joysticks
• Automotive-grade sleeves for all pipes
• Hydraulic platform leveling
• Weighing system

Price: AED 203000

Request for quote: +971525384269
