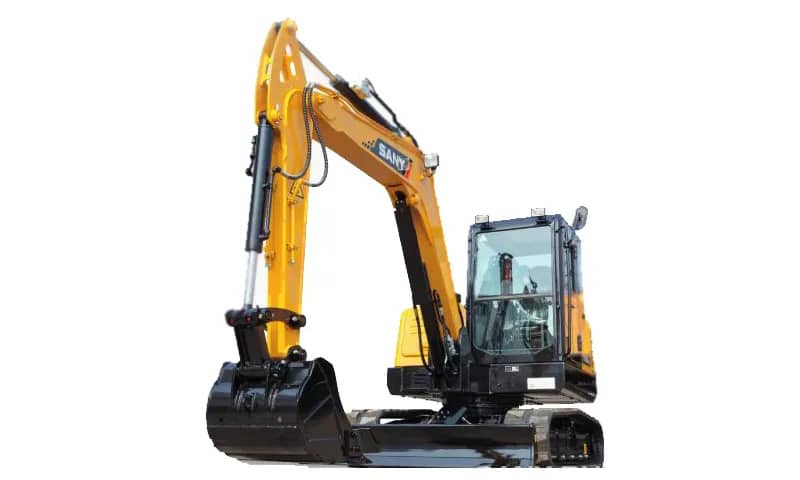

The 2025 SANY SY60C is a next-generation compact excavator that satisfies both Stage V (EU) and Tier 4 Final (EPA) emissions regulations, making it safe for the environment and suitable for use on construction sites all over the world. The SY60C’s powerful Yanmar engine provides strong digging capabilities, economical fuel consumption, and outstanding hydraulic performance. It is perfect for small urban or residential works because of its narrow radius and zero tail swing design. A sophisticated load-sensing hydraulic system, reinforced structure, an easy-to-use control arrangement, and an operator-friendly cabin with enhanced comfort and visibility are some of the salient characteristics.

Technical specification

• Engine Power: 42.4kW
• Engine Model: Yanmar 4TNV98C
• Engine Displacement: 3.3L
• Operating Weight: 6T
• Radiator: 10.4L
• Arm Digging Force: 33kN
• Standard Stick: 1.7m
• Standard Boom: 3m
• Carrier Wheel on Each Side: 1
• Thrust Wheel on Each Side: 5
• Hydraulic Tank: 85L
• Fuel Tank: 130L
• Bucket Capacity: 0.21m³
• Bucket Digging Force: 45kN
