Features

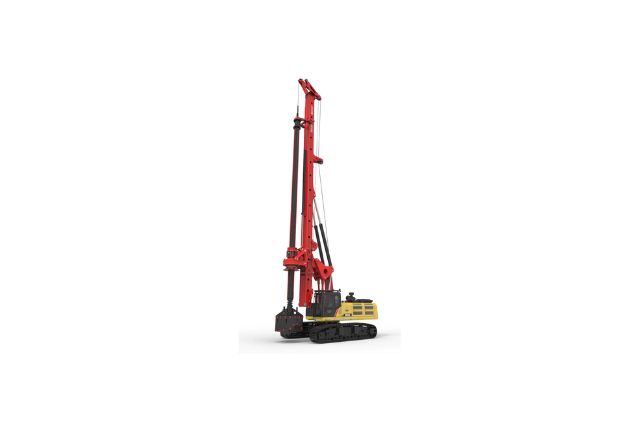

Designed for Civil Engineering Excellence

Perfect for deep foundation work, this rig supports high-efficiency drilling with fast lifting speed and accurate vertical control.

Chassis for Demanding Jobs
Telescopic widening design and a heavy-duty slewing bearing provide a stable platform for precision drilling.

Optimized Energy System
Imported EFI engine adjusts power in real-time, offering strong performance with lower energy consumption.

Parameters

Main Chassis

Base Engine: ISUZU 6UZ1

Engine Power: 257/2000kW/rpm

Emission Regulation: China Stage III

Rotary Drive

Rated Speed: 5~32rpm

Rated Output Torque: 235kN·m

Pile

Max. Pile Diameter: 2000mm

Max. Pile Depth: 68/52m

Crowd System

Crowd Force: 210kN

Stroke: 5000mm

Line Pull: 270kN

Overall Machine

Overall Height: 22870mm

Operating Weight: 81T

Transport Width: 3540mm

Transport Height: 3660mm

Main Winch

Price: AED 1,900,000

Request for quote: +971525384269
