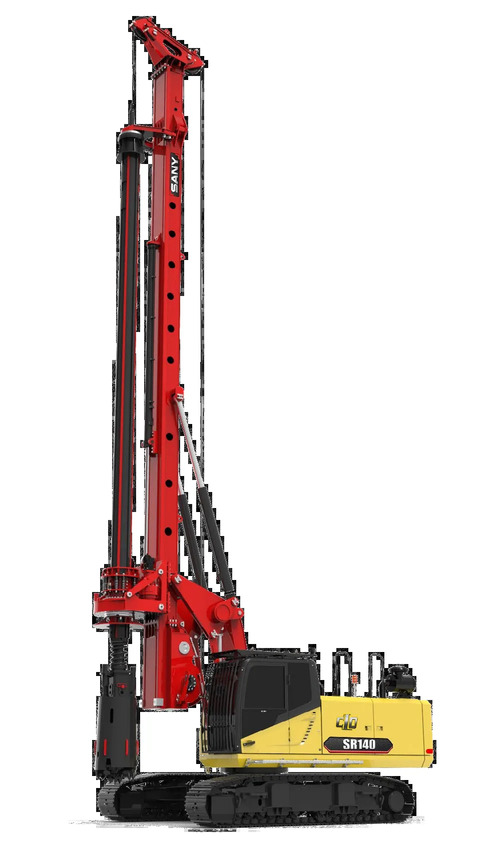

characteristics

Versatile and Effective
Their high main hoist lifting up and down speed, tall verticality of the completed boreholes, high operating efficiency, and small diameter and deep borehole construction make them popular in civil engineering.

Unique Chassis Type
For deep borehole construction, a telescopic huge widening chassis with a roller type large diameter slewing bearing is ideal.
Cost-effective and preserving energy
An imported big displacement EFI engine with a strong power output, power optimization control technology, real-time power distribution adjustment, quick reaction time, increased fuel economy, and greater energy efficiency.

Parameters

Main Chassis

Base Engine – ISUZU 4HK1

Engine Power – 133/2000kW/rpm

Emission Regulation – China Stage III

Rotary Drive

Rated Speed – 6～45rpm

Rated Output Torque – 140kN·m

Pile

Max. Pile Diameter – 1300/1500mm

Max. Pile Depth – 45/36m

Crowd System

Crowd Force – 120kN

Stroke – 3700mm

Line Pull – 160kN

Overall Machine

Overall Height – 16490mm

Operating Weight – 37T

Transport Width – 2660/2550mm

Transport Height – 3435mm

Main Winch

Lifting Capacity – 160kN

Max. Line Speed – 80m/min

Rope Diameter – 24mm

Request for quote: +971525384269

Price: AED1,200,000
