characteristics

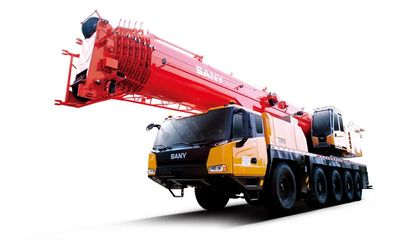

The All-terrain Chassis
A compact chassis that can be used on a variety of jobsites thanks to its improved suspension and all-wheel steering.

Enhanced Adaptability
varying combinations of counterweights and jibs. For various lifting tasks, we consistently offer the most cost-effective option.
Operation Efficiency
For changeable constructions, the single-cylinder pin system offers a variety of boom combinations.
Taking a Counterweight Journey
Because the cranes can travel with counterweight on construction sites, fewer transport trailers are needed.

Parameters

Operation

Counterweight – 42T

Max. Lifting Capacity – 130T

Max. Boom Length – 74.8m

Max. Jib Length – 26m

Max. Lifting Height – 95.5m

Max. Lifting Moment – 4685kN·m

Traveling

Available Districts – Outside Europe & USA

Engine Model (Emission Standard) – Benz OM460LA.E3A

Max. Gradeability – 46%

Max. Traveling Speed – 80km/h

Wheel Formula – 10×6×10

Request for quote: +971525384269

Price: AED1557000
