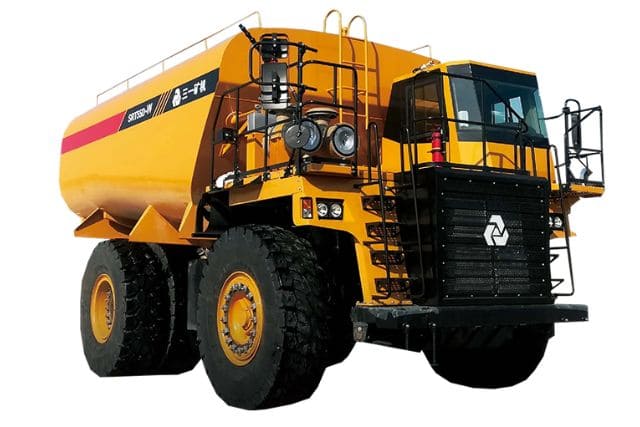

Ideal for mining and industrial applications, the SRT55D-W Sprinkler provides efficient dust suppression with minimal effort. It features a robust, corrosion-resistant frame to endure extreme conditions. Its wide spray pattern and strong water pressure ensure thorough surface coverage. Designed for areas like haul roads and stockpiles, it promotes cleaner air and safer work zones. Built for continuous, low-maintenance operation.

Parameters

• Automatic/Manual: Manual
• Axle: Heavy load type
• Capacity (Struck/Heaped): 50m³
• Displacement: 16.1L
• Engine Model: Volvo AD1643VE-B
• Gearbox Type: Avitec H6620AR
• Left/Right Hand Drive: Left/Right
• Load Weight: 50T
• Lubrication System: Manual/Automatic
• Max. Gradeability: 25%
• Maximum Torque: 3260NM
• Min. Turning Radius: 9540mm
• Net Weight: 45T
• Number/Type of Cylinders: 6/Straight type
• Size: 9300*5480*4950mm
• Total Power: 565kW
• Tyre: 24.00R35
