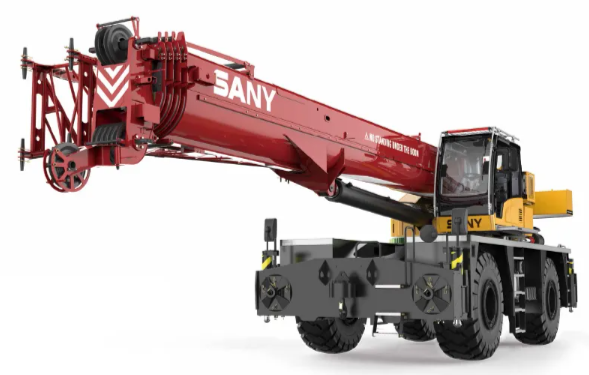

The compact body design with a triple-hinge luffing mechanism allows excellent mobility for on-road transport and challenging off-road conditions. Built for deserts, freezing areas, and tough terrains, it ensures reliability. With a torque converter providing high-speed locking, transmission efficiency is maximized. Smooth electrical gear shifting with a 5ms response enables easy operation, while the joystick can be adjusted with millimeter precision. Its advanced flow distribution system enhances inching performance.

Parameters

Operation

• Counterweight- 4.5T
• Max. Lifting Capacity- 65T
• Max. Boom Length- 45.5m
• Max. Jib Length- 16m
• Max. Lifting Height- 62.5m
• Max. Lifting Moment- 2340kN·m

Traveling

• Available Districts- Outside USA
• Engine Model (Emission Standard)- QSB6.7 (Stage Ⅲ)
• Max. Gradeability- 75%
• Max. Traveling Speed- 40km/h
• Wheel Formula- 4×2 / 4×4

Price: 2195000 AED

For More Information

Call us Now: +971 525384269
