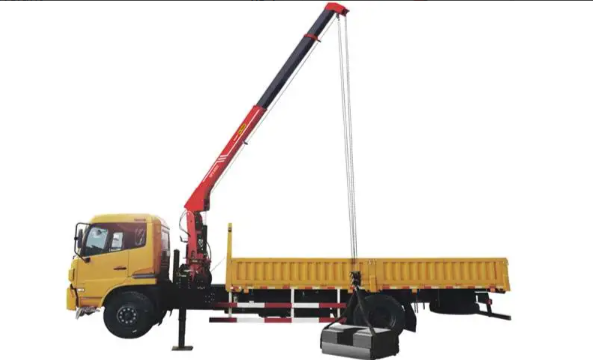

SANY PALFINGER designs this crane with ergonomics in mind, ensuring safe and comfortable operation. Built with a robust and low-maintenance structure, it uses modular components linked by standard interfaces. Sensitive controls allow precise positioning for demanding lifts, while stable movement supports multitasking. A built-in high-pressure filter safeguards hydraulics, extending system life. Durable UV resistance and stylish design enhance long-term performance.

Parameters

• Boom Length- 3.5-10.4m
• Length of the Basic Boom- 3.5 m
• Length of the Fully Extended Boom- 10.4 m
• Max. Lifting Capacity- 3.6T
• Max. Lifting Height- 12.5m
• Max. Outreach- 10.2m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 4.4 (m)
• Overall Weight- 1.3T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 8mt
• Rated Lifting Weight- 3.2T
• Recommended Volume for the System- 30-40 L/min
• Slewing Angle- Endless

Price: 700000 AED

For More Information

Call us Now: +971 525384269
