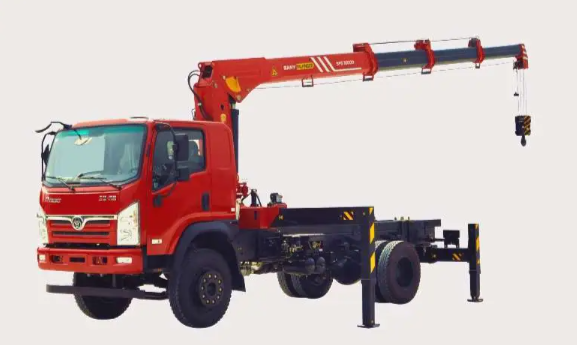

Engineered with ergonomic principles, this crane ensures safe and comfortable use. Built with a strong, reliable, and low-maintenance design, it uses modular components connected through standardized interfaces. Sensitive controls enable precise positioning for high-accuracy lifts, while stable motion allows multitasking. A standard high-pressure filter safeguards hydraulics, extending system life. With UV resistance, superior performance, and modern aesthetics, it’s a durable investment.

Parameters

• Boom Length- 4.7-12.5m
• Length of the Basic Boom- 4.7 m
• Length of the Fully Extended Boom- 12.5 m
• Max. Lifting Capacity- 7.5T
• Max. Lifting Height- 14.6m
• Max. Outreach- 12.3m
• Numbers of the Boom- 3 or 4
• Operating Mode- Lower seat
• Outrigger Span- 5.3 (m)
• Overall Weight- 2.65T
• Range of the Boom Lifting Angle- 0~75°
• Rated Lifting Moment- 16mt
• Rated Lifting Weight- 7T
• Recommended Volume for the System- 45-65 L/min
• Slewing Angle- Endless

Price: 760000 AED
